Seal-related repairs eat up 60-70% of all centrifugal pump maintenance budgets. That’s a staggering number. And when you’re running pumps at elevated temperatures—above 150°C (300°F)—the challenge gets significantly harder.
For most high-temperature applications, API Plan 23 (closed-loop seal chamber cooling) delivers the best balance of cooling efficiency and energy savings for single seals. For dual seal arrangements in critical or hazardous service above 120°C (250°F), Plan 53B is your best bet.
But the “best” plan depends on your specific situation. Let me walk you through how to make that decision.
Which API 682 Flush Plans Work Best for High Temperature Service?
The API 682 4th edition defines 32 basic piping configurations. For high-temperature applications, you’ll typically choose between Plan 21, Plan 23, or Plan 32 for single seals—and Plan 53A, 53B, or 54 for dual arrangements.
When Should You Use Plan 21 (Cooled Discharge Recirculation)?
Plan 21 takes process fluid from the pump discharge, routes it through an orifice and heat exchanger, then injects the cooled fluid into the seal chamber. It’s essentially a Plan 11 with a cooler added.
Best applications:
- Hot, non-polymerizing clean fluids below 176°C (350°F)
- Situations requiring high flush flow rates
- When process fluid is a good lubricant but needs temperature reduction
Limitations to consider:
Plan 21 is an open-loop system. You’re continuously pulling hot fluid from the discharge, cooling it, and injecting it into the seal chamber—where it mixes with the process and returns to the pump. This means your cooler has to handle the full process temperature on the inlet side.
In high-temperature applications, that creates fouling problems. When 300°C process fluid hits the relatively cold tubes of a water-cooled heat exchanger, localized boiling occurs. If your cooling water has any dissolved solids (and most plant cooling water does), those solids precipitate on the tube surfaces. Heat transfer drops, seal temperature climbs, and you’re back to premature failures.
Plan 21 also consumes more energy than Plan 23 because you’re continuously pumping fluid through the cooling loop.
Why Is Plan 23 the Preferred Choice for Most High-Temperature Applications?

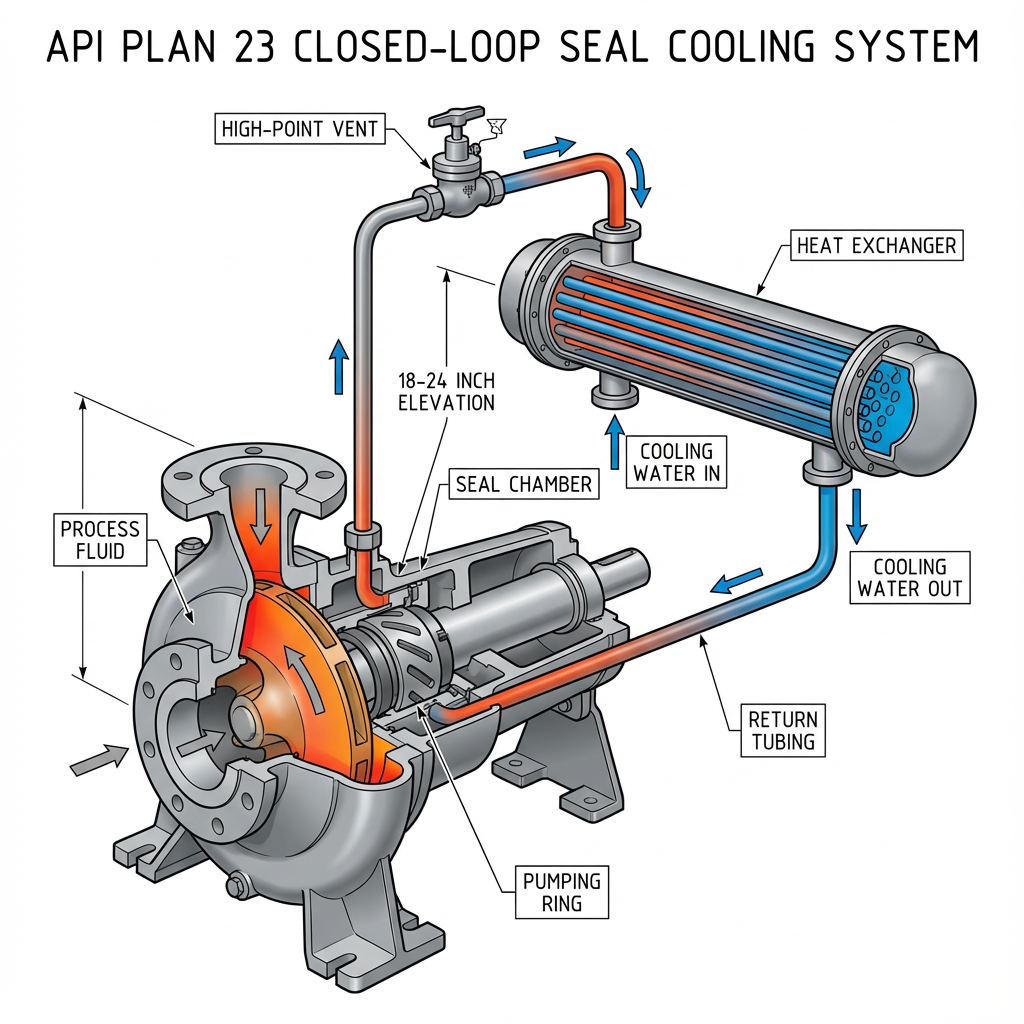

Plan 23 is fundamentally different. Instead of pulling fluid from the discharge, it circulates fluid from the seal chamber itself through a cooler and back to the seal chamber. A pumping ring on the seal provides the circulation force.
This closed-loop approach offers several advantages:
It’s dramatically more efficient. Plan 23 only removes the heat generated at the seal faces plus the heat that soaks in from the pump casing. It doesn’t try to cool your entire process stream. This means a smaller cooler, lower energy costs, and less fouling potential.
It achieves lower seal chamber temperatures. Since the cooled fluid recirculates in a closed loop rather than mixing back into the hot process stream, Plan 23 can maintain significantly lower temperatures at the seal faces.
The numbers speak for themselves. Industry experts consistently rate Plan 23 as the best option for high-temperature service. One seal engineer I respect puts it bluntly: Plan 23 is “probably the best plan, bar none, for optimized mechanical seal performance in high temperature applications.”
Critical installation requirements:
Plan 23 is unforgiving of sloppy installation. The heat exchanger must be positioned within 3 meters (10 feet) of the seal and 45-60 cm (18-24 inches) above the seal centerline. This elevation difference helps the pumping ring establish circulation and allows thermosyphon flow during standstill.
You need a high-point vent with a block valve. Air or vapor trapped in the cooling loop will break circulation and leave your seal without cooling—exactly when it needs it most.
Half-inch (12mm) tubing works for most applications, but three-quarter inch (18mm) tubing reduces flow resistance if you’re pushing the pumping ring’s capabilities.
When Does Plan 32 (External Flush) Make Sense?
Plan 32 injects clean fluid from an external source directly into the seal chamber. A throat bushing at the back of the chamber restricts flow toward the pump suction, maintaining higher pressure in the seal chamber.
Best applications:
- Contaminated or particle-laden process fluids
- Polymerizing or oxidizing fluids that shouldn’t contact the seal
- Fluids with poor lubricity
- When you need both cooling and contamination isolation
The high-temperature trade-off:
For hot applications, Plan 32 can create problems. The external flush fluid—typically water—enters at ambient temperature. This cold fluid hitting hot process stream causes thermal losses that can cost tens of thousands of dollars annually in energy.
The flush fluid also dilutes your product. If you’re running a chemical reactor at precise concentrations, adding water to your process stream may be unacceptable.
There’s another subtle issue: the external flush often has a lower boiling point than your process fluid. Injecting lower-boiling-point liquid into a hot seal chamber can actually reduce your NPSH available at the impeller as that liquid mixes with the process.
Plan 32 flush pressure must stay at least 2 barg (30 psig) above seal chamber pressure. The acceptable band is narrow—typically 10-15 psi above seal chamber pressure. Too low and you get process contamination. Too high and you crush the lubricating film at the seal faces.
When Should You Upgrade to Dual Seal Arrangements?
Single seals with proper flush plans handle many high-temperature applications well. But some situations call for the additional protection of dual seals.
What Makes Plan 53B Ideal for Critical High-Temperature Service?
A dual seal arrangement puts two seals in series with a barrier fluid chamber between them. The inner seal contains the process; the outer seal prevents barrier fluid from reaching the atmosphere. Plan 53B provides pressurized barrier fluid circulation with heat removal.
How Plan 53B works:
A bladder accumulator applies nitrogen pressure to the barrier fluid without the gas directly contacting the liquid. This eliminates gas entrainment problems that can plague Plan 53A systems. A pumping ring circulates barrier fluid through an integral heat exchanger, removing both seal-generated heat and heat soak from the pump casing.
Temperature and pressure capabilities:
Plan 53B works reliably up to 260°C (500°F) when barrier pressure stays below 200 psi. Field experience shows systems can handle 300 psig if temperature is controlled below 120°C (250°F).
How Do Plan 53A, 53B, and 54 Compare for High-Temperature Applications?
| Feature | Plan 53A | Plan 53B | Plan 54 |
|---|---|---|---|
| Pressurization | Direct gas contact | Bladder accumulator | External pump |
| Max pressure | 150 psig (300 psig with temp control) | 200+ psig | No practical limit |
| Cooling | Limited (no integral exchanger) | Good (integral heat exchanger) | Excellent (dedicated cooling loop) |
| Best temp range | Below 120°C (250°F) | Below 260°C (500°F) | Up to 425°C (800°F) |
| Complexity/Cost | Low | Medium | High |
Plan 53A keeps things simple but has limitations. The nitrogen directly contacts the barrier fluid, which can cause gas absorption and bubble formation at higher pressures and temperatures. API 682 recommends staying below 150 psig to avoid gas entrainment.
Plan 53B adds the bladder accumulator and heat exchanger, handling higher temperatures and pressures. The barrier fluid gets thermally cycled more frequently than in 53A due to the smaller fluid volume, so barrier fluid life is somewhat reduced.
Plan 54 uses an external pump, cooler, and filter loop for barrier fluid circulation. It’s the most robust option for extreme temperatures and pressures but adds complexity and cost. This is your go-to choice for process temperatures above 260°C (500°F) or barrier pressures above 200 psi.
How Do You Prevent Coking in High-Temperature Hydrocarbon Service?
Coking is one of the most frustrating problems in high-temperature seal applications. Hydrocarbons that leak past the inboard seal face hit atmospheric oxygen, oxidize at elevated temperature, and form hard carbon deposits.
When Is API Plan 62 (Quench) Required?
Plan 62 delivers low-pressure steam or nitrogen to the atmospheric side of the seal. This quench fluid serves two purposes: it cools any process leakage that reaches the atmospheric side, and it displaces oxygen to prevent oxidation.
You need Plan 62 when:
- Seal temperature exceeds 177°C (350°F) in known coking service
- You’re pumping hydrocarbons prone to oxidation
- Previous seal failures showed black carbon buildup on the atmospheric side
Steam vs. nitrogen:
Steam provides better cooling due to its heat capacity and phase change. Nitrogen prevents oxidation but doesn’t cool as effectively.
Critical warning: Wet steam is dangerous to brittle seal face materials. A slug of liquid water hitting hot seal faces causes rapid vaporization and thermal shock that can fracture carbon or silicon carbide faces. If you’re using steam quench, make sure it’s dry.
Making the Right Choice for Your Application
Selecting the right mechanical seal flushing plan for high-temperature service comes down to matching your specific conditions to the capabilities of each plan.
For single seals in clean, non-polymerizing service:
- Below 176°C (350°F): Plan 21 works if you can manage cooler fouling
- Above 176°C (350°F): Plan 23 is your best choice for efficiency and cooling performance
For contaminated, polymerizing, or poor-lubricity fluids:
- Plan 32 with external clean flush, accepting the trade-offs in thermal efficiency and product dilution
For critical, hazardous, or zero-emission requirements:
- Dual seals with Plan 53B up to 260°C (500°F)
- Plan 54 for extreme temperatures or pressures
Don’t forget the supporting elements:
- Plan 62 quench for coking prevention above 177°C in hydrocarbon service
- Metal bellows seals above 150°C where elastomers fail
- Silicon carbide or antimony-impregnated carbon faces for thermal performance
Installation and monitoring matter as much as plan selection:
- Position heat exchangers correctly
- Vent all high points
- Size orifices properly
- Install gauges and actually read them
The best flush plan, properly installed and monitored, can deliver 25,000+ hours of seal life—nearly three years of continuous operation. The wrong plan, or the right plan installed poorly, might give you three months.
That’s the difference between managing your maintenance schedule and having your maintenance schedule manage you.
