Multi-Spring Mechanical Seals

Multi-spring pusher seals for process, chemical and hot-water pumps, in balanced and unbalanced versions. The models below are the standard ones in our catalog; we build most other multi-spring seals too.

Request a quote →Talk to an engineer Download catalog PDF · 10 MB ↓

Not on the list? We build most multi-spring seals of any brand, in standard or special sizes: send the seal part number, a drawing or the old seal. All are equivalents, not sold as genuine OEM parts.

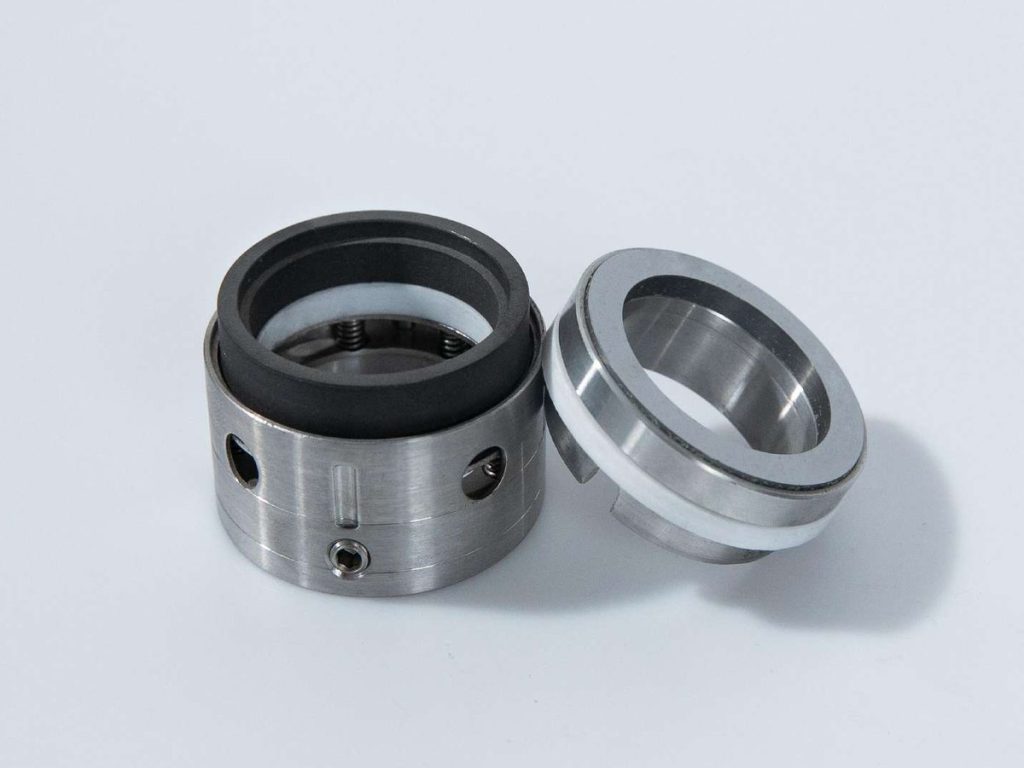

Multi-spring seal head with stationary seat

We are the manufacturer, not a reseller: faces, springs and secondary seals are matched to your duty and built in-house at quantities that suit a distributor, an OEM or a maintenance department.

Balanced & unbalancedfor low- and high-pressure duty

Any face paircarbon, ceramic, SiC or tungsten carbide

Metric & inchstandard shaft sizes in both

Catalog

Multi-spring seals in our catalog

Pick the model by its shape on the drawing and its size range; the drawings and dimension tables follow below.

Model	Standard sizes (d1)	Pressure	Speed	Temperature
WM 105U	35 – 120 mm	≤ 0.8 MPa	≤ 13 m/s	-20 to +200 °C
WM 105B	35 – 120 mm	≤ 0.6-3.0 MPa	≤ 13 m/s	-20 to +200 °C
WM 58U/59U	14 – 100 mm	≤ 1.0 MPa	≤ 20 m/s	-40 to +200 °C
WM 58B/59B	14 – 100 mm	≤ 1.0 MPa	≤ 20 m/s	-40 to +200 °C
WM 8U8T	5/8" – 3"	≤ 1.7 MPa	≤ 25 m/s	-50 to +250 °C
WM 9U9T	5/8" – 3"	≤ 1.7 MPa	≤ 25 m/s	-50 to +250 °C

Limits as printed in our catalog for each model; the real limit depends on the face pair, elastomer and fluid.

Drawings & dimensions

Drawings and dimension tables

Dimensions in mm unless a table says inches. Inch sizes are named by the nominal shaft size in inches; d1 gives the same size in mm. Letters match the section drawing. Standard sizes shown; other sizes are built from a drawing or the old seal.

Catalog model

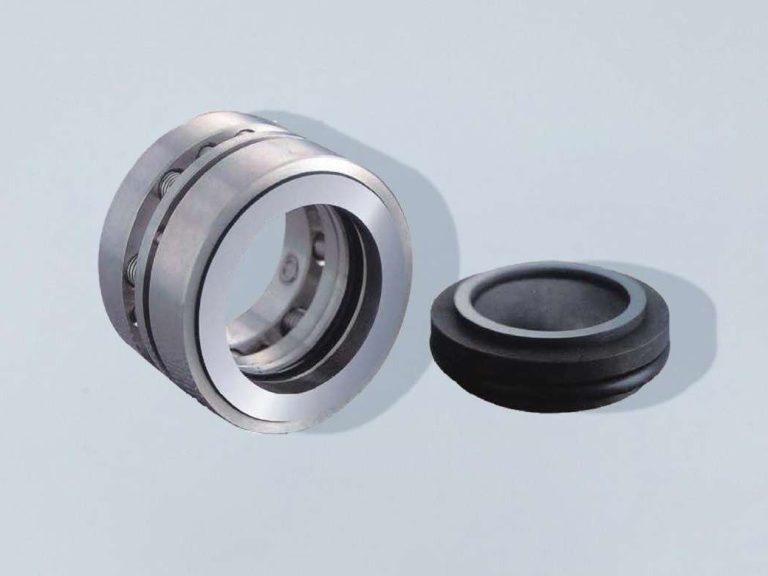

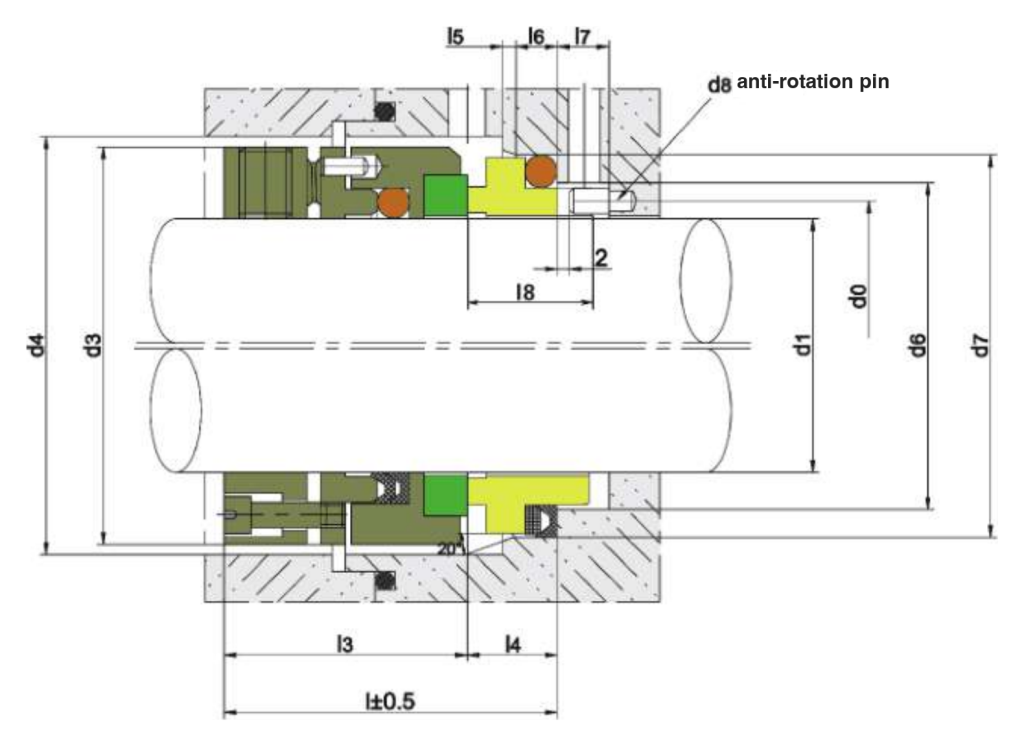

WM 105U

Pressure: ≤ 0.8 MPa
Speed: ≤ 13 m/s
Temperature: -20 to +200 °C

Stationary ring: Ceramic, SiC, tungsten carbide
Rotary ring: Carbon, SiC, tungsten carbide
Secondary seals: NBR, EPDM, Viton
Spring and pressed parts: Steel

Model	d1 (mm)	d3	d4	d6	d7	d8	d0	l	l3	l4	l5	l6	l7	l8
WM105U-35	35	57	60	45	55	3	40	52	38	14	2.0	6.5	8.0	19
WM105U-40	40	62	65	50	60	3	45	52	38	14	2.0	6.5	8.0	19
WM105U-45	45	67	70	55	65	3	50	53	39	14	2.0	6.5	8.0	19
WM105U-50	50	72	75	60	70	3	55	53	39	14	2.5	6.5	8.0	19
WM105U-55	55	77	80	65	75	3	60	53	39	14	2.5	6.5	8.0	19
WM105U-60	60	82	85	70	80	3	65	53	39	14	2.5	6.5	8.0	19
WM105U-65	65	91	95	80	90	3	73	61	44	17	2.5	6.5	8.0	22
WM105U-70	70	96	100	85	97	3	78	63	44	19	2.5	7.5	9.0	25
WM105U-75	75	101	105	90	102	3	83	63	44	19	2.5	7.5	9.0	25
WM105U-80	80	106	110	95	107	3	88	63	44	19	3.0	7.5	9.0	25
WM105U-85	85	111	115	100	112	3	93	65	46	19	3.0	7.5	9.0	25
WM105U-90	90	116	120	105	117	3	98	65	46	19	3.0	7.5	9.0	25
WM105U-95	95	121	125	110	122	3	103	65	46	19	3.0	7.5	9.0	25
WM105U-100	100	126	130	115	127	3	108	65	46	19	3.0	7.5	9.0	25
WM105U-110	110	140	145	130	142	3	120	72	51	21	3.0	8.0	9.0	27
WM105U-120	120	150	155	140	152	3	130	72	51	21	3.0	8.0	9.0	27

Catalog model

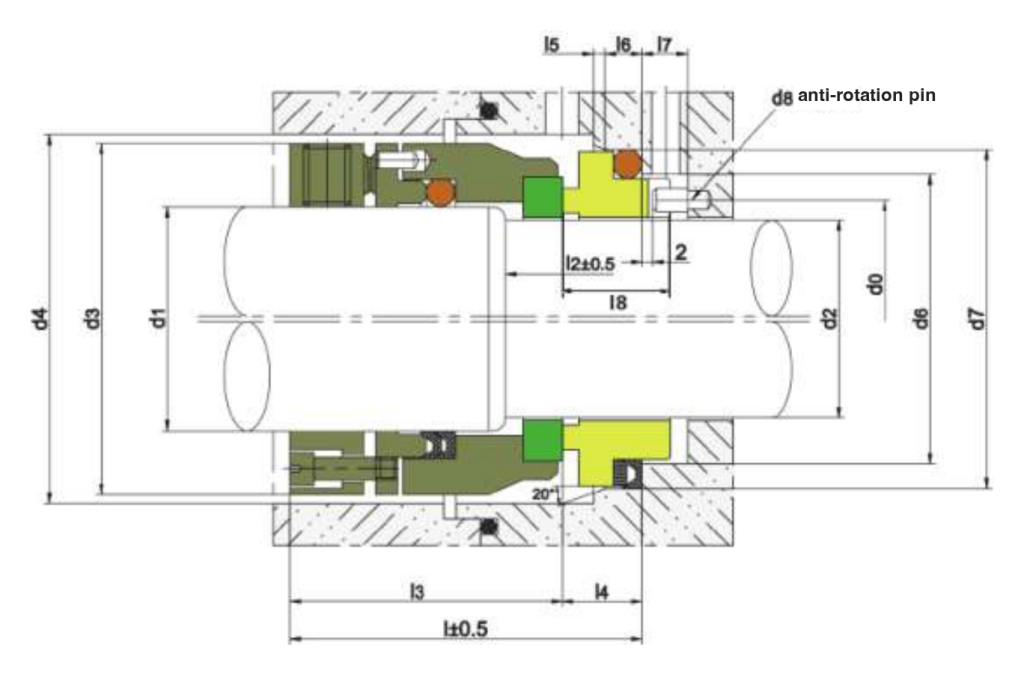

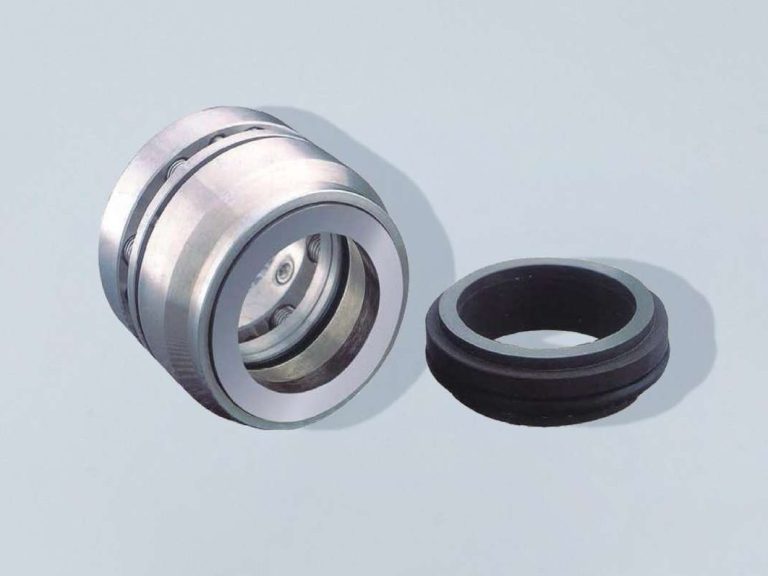

WM 105B

Pressure: ≤ 0.6-3.0 MPa
Speed: ≤ 13 m/s
Temperature: -20 to +200 °C

Stationary ring: Ceramic, SiC, tungsten carbide
Rotary ring: Carbon, SiC, tungsten carbide
Secondary seals: NBR, EPDM, Viton
Spring and pressed parts: Steel

Mode	d1 (mm)	d2	d3	d4	d6	d7	d8	d0	l	l2	l3	l4	l5	l6	l7	l8
WM105B-35	35	28	57	60	45	55	3	37	62	24	48	14	2.0	6.5	8.0	19
WM105B-40	40	34	62	65	50	60	3	42	62	24	48	14	2.0	6.5	8.0	19
WM105B-45	45	38	67	70	55	65	3	47	63	24	49	14	2.0	6.5	8.0	19
WM105B-50	50	44	72	75	60	70	3	52	63	24	49	14	2.5	6.5	8.0	19
WM105B-55	55	48	77	80	65	75	3	57	63	24	49	14	2.5	6.5	8.0	19
WM105B-60	60	52	82	85	70	80	3	62	63	24	49	14	2.5	6.5	8.0	19
WM105B-65	65	58	91	95	80	90	3	70	68	27	51	17	2.5	6.5	8.0	22
WM105B-70	70	62	96	100	85	97	3	74	73	32	54	19	2.5	7.5	9.0	25
WM105B-75	75	66	101	105	90	102	3	79	73	32	54	19	2.5	7.5	9.0	25
WM105B-80	80	72	106	110	95	107	3	84	73	32	54	19	3.0	7.5	9.0	25
WM105B-85	85	76	111	115	100	112	3	89	75	32	56	19	3.0	7.5	9.0	25
WM105B-90	90	82	116	120	105	117	3	94	75	32	56	19	3.0	7.5	9.0	25
WM105B-95	95	85	121	125	110	122	3	99	75	32	56	19	3.0	7.5	9.0	25
WM105B-100	100	90	126	130	115	127	3	104	75	32	56	19	3.0	7.5	9.0	25
WM105B-110	110	100	140	145	130	142	3	116	84	36	63	21	3.0	8.0	9.0	27
WM105B-120	120	110	150	155	140	152	3	126	84	36	63	21	3.0	8.0	9.0	27

Catalog model

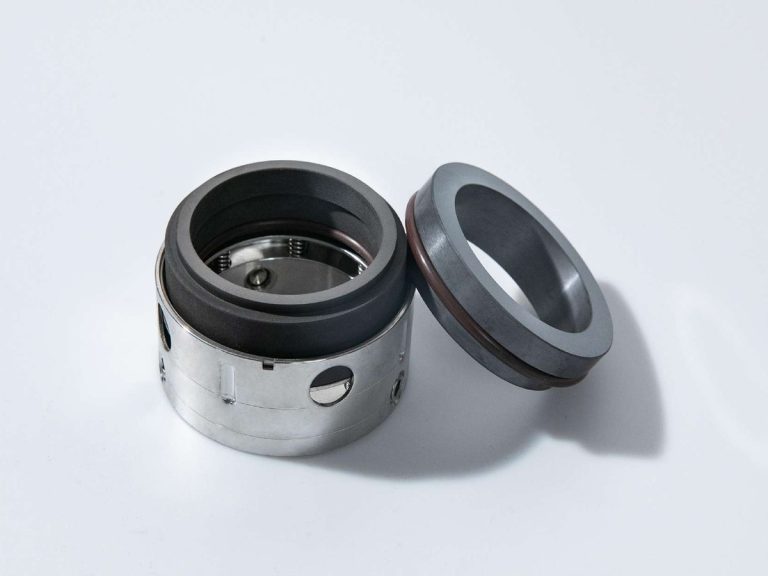

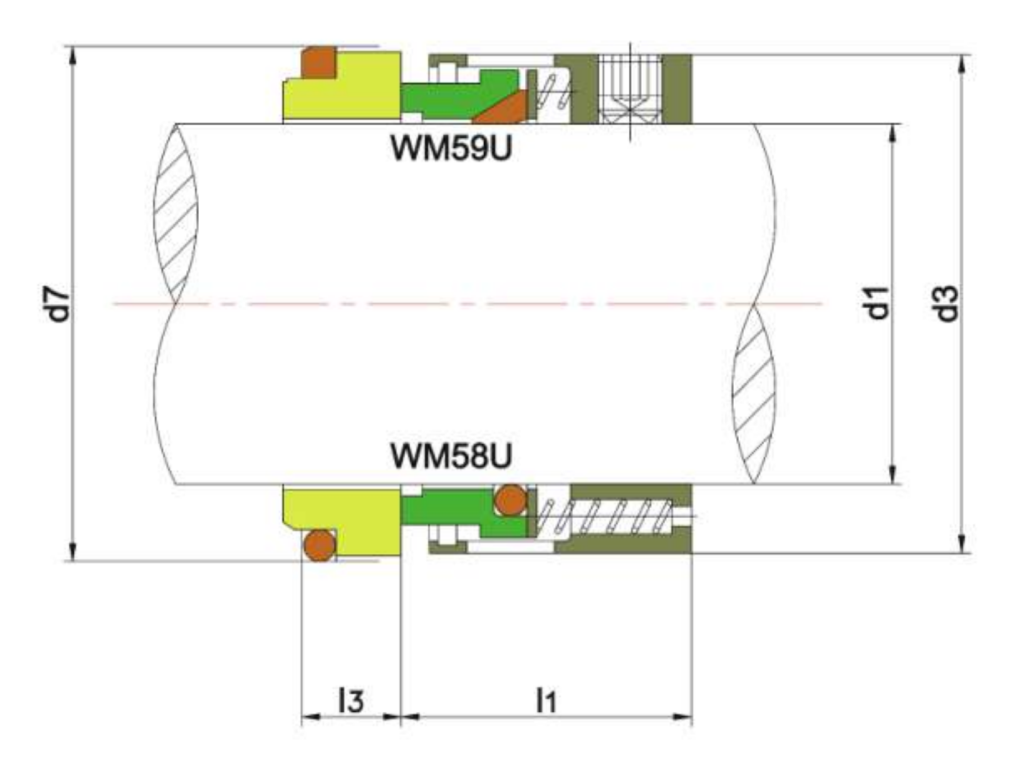

WM 58U/59U

Pressure: ≤ 1.0 MPa
Speed: ≤ 20 m/s
Temperature: -40 to +200 °C

Stationary ring: Ceramic, SiC, tungsten carbide
Rotary ring: Carbon, SiC, tungsten carbide
Secondary seals: NBR, EPDM, Viton
Spring and pressed parts: Steel

Model	d1 (mm)	d3	d7	l3	l1
WM58U WM59U-14	14	24	25	12	23.2
WM58U WM59U-16	16	26	27	12	23.2
WM58U WM59U-18	18	32	33	13.5	24.2
WM58U WM59U-20	20	34	35	13.5	24.2
WM58U WM59U-22	22	36	37	13.5	24.2
WM58U WM59U-24	24	38	39	13.5	26.9
WM58U WM59U-25	25	39	40	13	27.2
WM58U WM59U-28	28	42	43	12.5	30.2
WM58U WM59U-30	30	44	45	12	30.7
WM58U WM59U-32	32	46	48	12	30.7
WM58U WM59U-33	33	47	48	12	30.7
WM58U WM59U-35	35	49	50	12	30.7
WM58U WM59U-38	38	54	56	13	32.2
WM58U WM59U-40	40	56	58	13	32.2
WM58U WM59U-43	43	59	61	13	32.2
WM58U WM59U-45	45	61	63	13	32.2
WM58U WM59U-48	48	64	66	13	32.2
WM58U WM59U-50	50	66	70	13.5	34.2
WM58U WM59U-53	53	69	73	13.5	34.2
WM58U WM59U-55	55	71	75	13.5	34.2
WM58U WM59U-58	58	78	78	13.5	39.2
WM58U WM59U-60	60	80	80	13.5	39.2
WM58U WM59U-63	63	83	83	13.5	39.2
WM58U WM59U-65	65	85	85	13.5	39.2
WM58U WM59U-68	68	88	90	13.5	39.2
WM58U WM59U-70	70	90	92	14.5	45.7
WM58U WM59U-75	75	95	97	14.5	45.7
WM58U WM59U-80	80	104	105	15	45.2
WM58U WM59U-85	85	109	110	15	45.2
WM58U WM59U-90	90	114	115	15	50.2
WM58U WM59U-95	95	119	120	15	50.2
WM58U WM59U-100	100	124	125	15	50.2

Catalog model

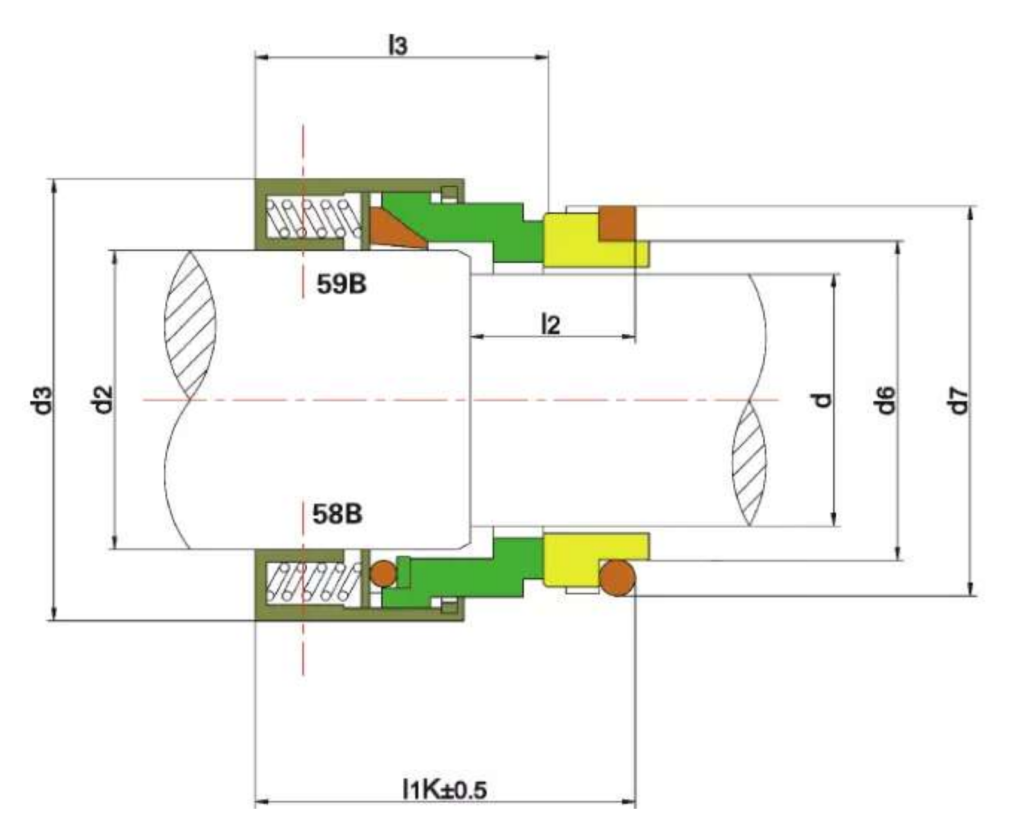

WM 58B/59B

Pressure: ≤ 1.0 MPa
Speed: ≤ 20 m/s
Temperature: -40 to +200 °C

Stationary ring: Ceramic, SiC, tungsten carbide
Rotary ring: Carbon, SiC, tungsten carbide
Secondary seals: NBR, EPDM, Viton
Spring and pressed parts: Steel

Model	d (mm)	d2	d3	l1k	l2	l3	d6	d7
WM58B WM59B-14	14	18	32	42.5	18	30.5	21	25
WM58B WM59B-16	16	20	34	42.5	18	30.5	23	27
WM58B WM59B-18	18	22	36	45.0	20	31.5	27	33
WM58B WM59B-20	20	24	38	45.0	20	31.5	29	35
WM58B WM59B-22	22	26	40	45.0	20	31.5	31	37
WM58B WM59B-24	24	28	42	47.5	20	34.2	33	39
WM58B WM59B-25	25	30	44	47.5	20	34.5	34	40
WM58B WM59B-28	28	33	47	50.0	20	37.5	37	43
WM58B WM59B-30	30	35	49	50.0	20	38.0	39	45
WM58B WM59B-32	32	38	54	50.0	20	38.0	42	48
WM58B WM59B-33	33	38	54	50.0	20	38.0	42	48
WM58B WM59B-35	35	40	56	50.0	20	38.0	44	50
WM58B WM59B-38	38	43	59	52.5	23	39.5	49	56
WM58B WM59B-40	40	45	61	52.5	23	39.5	51	58
WM58B WM59B-43	43	48	64	52.5	23	39.5	54	61
WM58B WM59B-45	45	50	66	52.5	23	39.5	56	63
WM58B WM59B-48	48	53	69	52.5	25	39.5	59	66
WM58B WM59B-50	50	55	71	57.5	25	44.0	62	70
WM58B WM59B-53	53	58	78	57.5	25	44.0	65	73
WM58B WM59B-55	55	60	80	57.5	25	44.0	67	75
WM58B WM59B-58	58	63	83	62.5	25	49.0	70	78
WM58B WM59B-60	60	65	85	62.5	25	49.0	72	80
WM58B WM59B-63	63	68	88	62.5	25	49.0	75	83
WM58B WM59B-65	65	70	90	62.5	25	49.0	77	85
WM58B WM59B-70	70	75	95	70.0	28	55.5	83	92
WM58B WM59B-75	75	80	104	70.0	28	55.5	88	97
WM58B WM59B-80	80	85	109	70.0	28	55.0	95	105
WM58B WM59B-85	85	90	114	75.0	28	60.0	100	110
WM58B WM59B-90	90	95	119	75.0	28	60.0	105	115
WM58B WM59B-95	95	100	124	75.0	28	60.0	110	120
WM58B WM59B-100	100	105	129	75.0	28	60.0	115	125

Catalog model

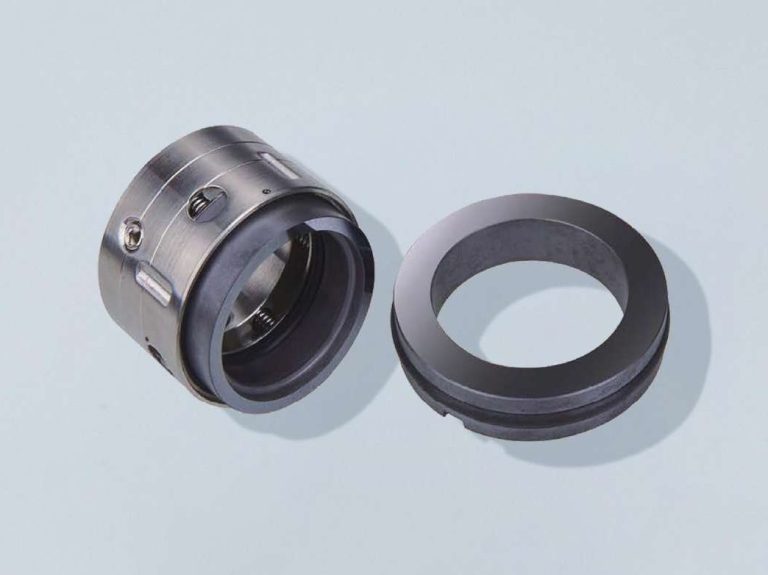

WM 8U8T

Elastomer O-ring, inch sizes. Usually corresponds to the John Crane Type 8-1 style.

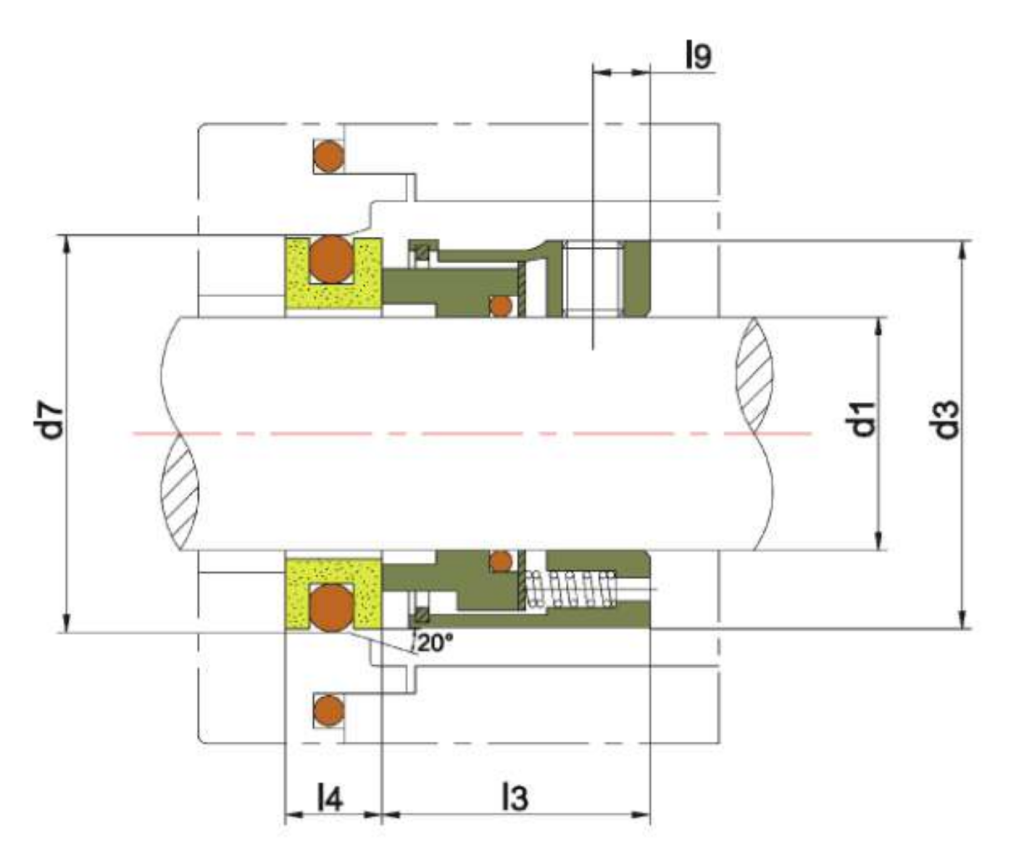

WM 8U8T section drawing with dimension letters

Pressure: ≤ 1.7 MPa
Speed: ≤ 25 m/s
Temperature: -50 to +250 °C

Rotary ring: Carbon, SiC, tungsten carbide
Stationary ring: Ceramic, SiC, tungsten carbide
Secondary seals: NBR, EPDM, Viton
Spring and metal parts: 304 stainless, 316 stainless

WM8U · Inch sizes, dimensions in inches

Model	d1 (in)	d3	d7	l3	l4	l9
WM8U-5/8"	0.625	1.187	1.250	0.750	0.406	0.156
WM8U-3/4"	0.750	1.312	1.375	0.875	0.406	0.187
WM8U-7/8"	0.875	1.437	1.500	0.937	0.406	0.187
WM8U-1"	1.000	1.562	1.625	1.000	0.437	0.187
WM8U-1 1/8"	1.125	1.687	1.750	1.062	0.437	0.218
WM8U-1 1/4"	1.250	1.875	1.875	1.062	0.437	0.187
WM8U-1 3/8"	1.375	2.000	2.000	1.125	0.437	0.187
WM8U-1 1/2"	1.500	2.125	2.125	1.125	0.437	0.187
WM8U-1 5/8"	1.625	2.375	2.375	1.375	0.500	0.281
WM8U-1 3/4"	1.750	2.500	2.500	1.375	0.500	0.281
WM8U-1 7/8"	1.875	2.625	2.625	1.375	0.500	0.281
WM8U-2"	2.000	2.750	2.750	1.375	0.500	0.281
WM8U-2 1/8"	2.125	3.000	3.000	1.687	0.562	0.343
WM8U-2 1/4"	2.250	3.125	3.125	1.687	0.562	0.343
WM8U-2 3/8"	2.375	3.250	3.250	1.687	0.562	0.343
WM8U-2 1/2"	2.500	3.375	3.375	1.687	0.562	0.343
WM8U-2 5/8"	2.625	3.500	3.375	1.687	0.625	0.343
WM8U-2 3/4"	2.750	3.625	3.500	1.687	0.625	0.343
WM8U-2 7/8"	2.875	3.750	3.750	1.687	0.625	0.343
WM8U-3"	3.000	3.812	3.875	1.687	0.625	0.343

WM8T · Inch sizes, dimensions in inches

Model	d1 (in)	d3	d7	l3	l4	l9
WM8T-5/8"	0.625	1.062	1.250	0.937	0.406	0.156
WM8T-3/4"	0.750	1.187	1.375	0.937	0.406	0.187
WM8T-7/8"	0.875	1.312	1.500	0.937	0.406	0.187
WM8T-1"	1.000	1.437	1.625	1.000	0.437	0.187
WM8T-1 1/8"	1.125	1.562	1.750	1.000	0.437	0.218
WM8T-1 1/4"	1.250	1.687	1.875	1.000	0.437	0.187
WM8T-1 3/8"	1.375	1.937	2.000	1.375	0.437	0.187
WM8T-1 1/2"	1.500	1.937	2.125	1.125	0.437	0.187
WM8T-1 5/8"	1.625	2.250	2.375	1.156	0.500	0.281
WM8T-1 3/4"	1.750	2.312	2.500	1.375	0.500	0.281
WM8T-1 7/8"	1.875	2.500	2.625	1.375	0.500	0.281
WM8T-2"	2.000	2.625	2.750	1.375	0.500	0.281
WM8T-2 1/8"	2.125	2.812	3.000	1.687	0.562	0.343
WM8T-2 1/4"	2.250	2.843	3.125	1.375	0.562	0.343
WM8T-2 3/8"	2.375	3.000	3.250	1.687	0.562	0.343
WM8T-2 1/2"	2.500	3.125	3.375	1.375	0.562	0.343
WM8T-2 5/8"	2.625	3.250	3.375	1.687	0.625	0.343
WM8T-2 3/4"	2.750	3.375	3.500	1.687	0.625	0.343
WM8T-2 7/8"	2.875	3.500	3.750	1.687	0.625	0.343
WM8T-3"	3.000	3.625	3.875	1.687	0.625	0.343

Catalog model

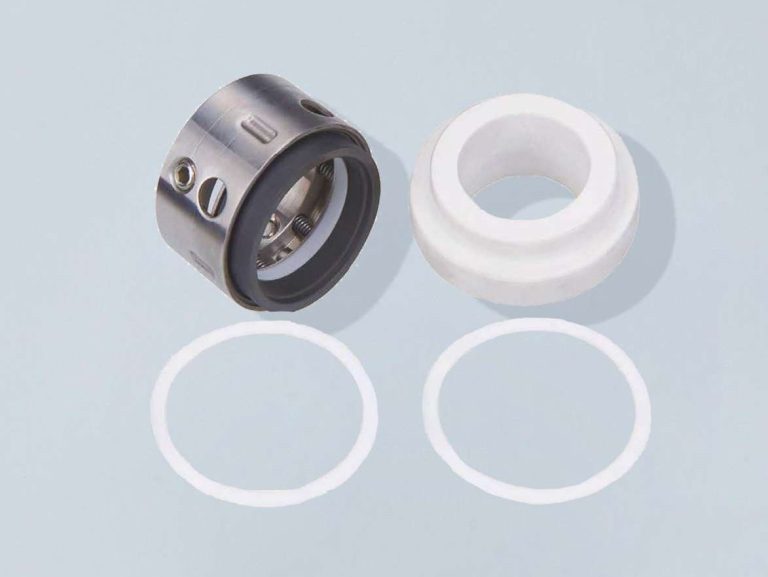

WM 9U9T

PTFE wedge, inch sizes. Usually corresponds to the John Crane Type 9 style.

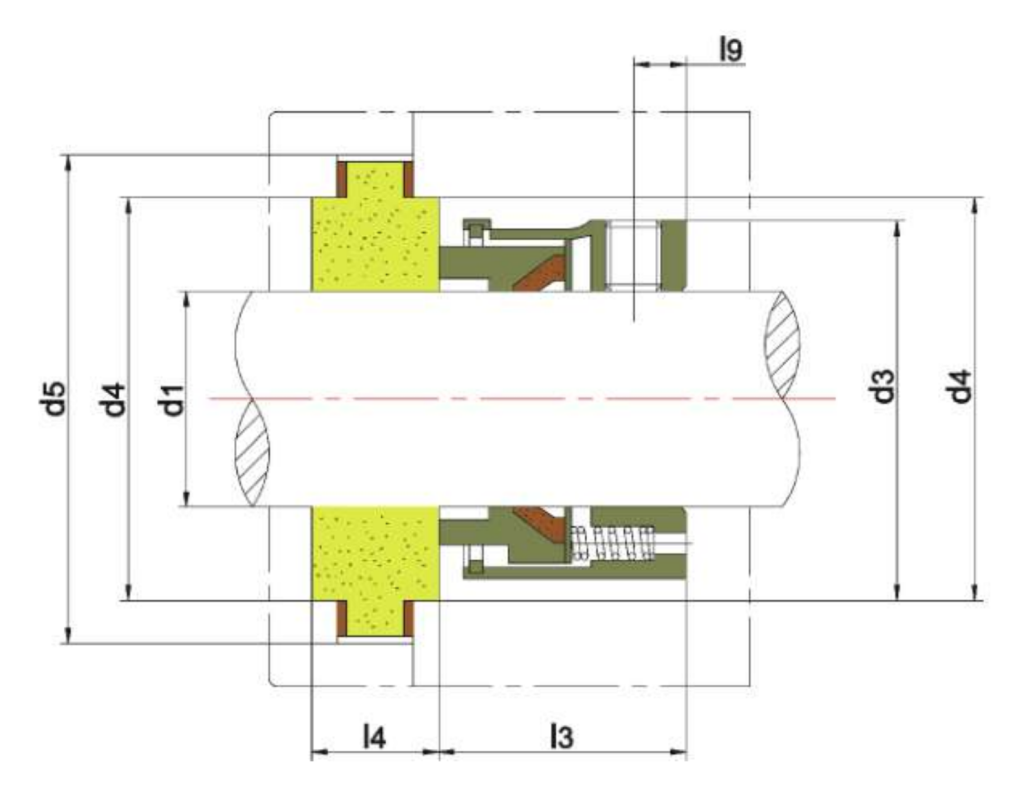

WM 9U9T section drawing with dimension letters

Pressure: ≤ 1.7 MPa
Speed: ≤ 25 m/s
Temperature: -50 to +250 °C

Rotary ring: Carbon, SiC, tungsten carbide
Stationary ring: Ceramic, SiC, tungsten carbide
Secondary seals: NBR, EPDM, Viton
Spring and metal parts: 304 stainless, 316 stainless

WM9U · Inch sizes, dimensions in inches

Model	d1 (in)	d3	d4	d5	l3	l4	l9
WM9U-5/8"	0.625	1.187	1.250	1.593	0.750	0.812	0.156
WM9U-3/4"	0.750	1.312	1.375	1.718	0.875	0.812	0.187
WM9U-7/8"	0.875	1.437	1.500	1.843	0.937	0.812	0.187
WM9U-1"	1.000	1.562	1.625	1.968	1.000	0.812	0.187
WM9U-1 1/8"	1.125	1.687	1.750	2.093	1.062	0.812	0.218
WM9U-1 1/4"	1.250	1.875	1.875	2.218	1.062	0.812	0.187
WM9U-1 3/8"	1.375	2.000	2.000	2.593	1.125	0.875	0.187
WM9U-1 1/2"	1.500	2.125	2.125	2.593	1.125	0.875	0.187
WM9U-1 5/8"	1.625	2.375	2.375	2.906	1.375	0.875	0.281
WM9U-1 3/4"	1.750	2.500	2.500	2.968	1.375	0.875	0.281
WM9U-1 7/8"	1.875	2.625	2.625	3.156	1.375	0.875	0.281
WM9U-2"	2.000	2.750	2.750	3.406	1.375	1.000	0.281
WM9U-2 1/8"	2.125	3.000	3.000	3.593	1.687	1.000	0.343
WM9U-2 1/4"	2.250	3.125	3.125	3.625	1.687	1.000	0.343
WM9U-2 3/8"	2.375	3.250	3.250	3.781	1.687	1.000	0.343
WM9U-2 1/2"	2.500	3.375	3.375	3.906	1.687	1.000	0.343
WM9U-2 5/8"	2.625	3.500	3.375	4.031	1.687	1.000	0.343
WM9U-2 3/4"	2.750	3.625	3.500	4.156	1.687	1.000	0.343
WM9U-2 7/8"	2.875	3.750	3.750	4.281	1.687	1.000	0.343
WM9U-3"	3.000	3.812	3.875	4.406	1.687	1.000	0.343

WM9T · Inch sizes, dimensions in inches

Model	d1 (in)	d3	d4	d5	l3	l4	l9
WM9T-5/8"	0.625	1.062	1.250	1.593	0.937	0.812	0.156
WM9T-3/4"	0.750	1.187	1.375	1.718	0.937	0.812	0.187
WM9T-7/8"	0.875	1.312	1.500	1.843	0.937	0.812	0.187
WM9T-1"	1.000	1.437	1.625	1.968	1.000	0.812	0.187
WM9T-1 1/8"	1.125	1.562	1.750	2.093	1.000	0.812	0.218
WM9T-1 1/4"	1.250	1.687	1.875	2.218	1.375	0.812	0.187
WM9T-1 3/8"	1.375	1.937	2.000	2.593	1.000	0.875	0.187
WM9T-1 1/2"	1.500	1.937	2.125	2.593	1.125	0.875	0.187
WM9T-1 5/8"	1.625	2.250	2.375	2.903	1.156	0.875	0.281
WM9T-1 3/4"	1.750	2.312	2.500	2.968	1.375	0.875	0.281
WM9T-1 7/8"	1.875	2.500	2.625	3.156	1.375	0.875	0.281
WM9T-2"	2.000	2.625	2.750	3.406	1.375	1.000	0.281
WM9T-2 1/8"	2.125	2.812	3.000	3.593	1.687	1.000	0.343
WM9T-2 1/4"	2.250	2.843	3.125	3.625	1.375	1.000	0.343
WM9T-2 3/8"	2.375	3.000	3.250	3.781	1.687	1.000	0.343
WM9T-2 1/2"	2.500	3.125	3.375	3.906	1.375	1.000	0.343
WM9T-2 5/8"	2.625	3.250	3.375	4.031	1.687	1.000	0.343
WM9T-2 3/4"	2.750	3.375	3.500	4.156	1.687	1.000	0.343
WM9T-2 7/8"	2.875	3.500	3.750	4.281	1.687	1.000	0.343
WM9T-3"	3.000	3.625	3.875	4.406	1.687	1.000	0.343

FAQ

Multi-Spring Seal FAQ

My seal is not in the table. Can you still make it?

Yes. The catalog shows our standard sizes; we build most other multi-spring seals from a drawing, a part number or the old seal. To quote, send the seal part number, a drawing or the old seal.

Balanced or unbalanced?

An unbalanced seal suits low stuffing-box pressure; once pressure climbs, a balanced seal runs cooler and lasts longer. See balanced vs unbalanced seals.

Single spring or multi-spring?

Several small springs give even face loading in a short axial length; a single large spring tolerates clogging fluids better. See multiple spring mechanical seals.

Source Multi-Spring Seals At Scale

Catalog sizes, custom sizes and private-label multi-spring seals built in-house at low minimums. Send the seal drawing, the seal model or a sample and we’ll quote.

Request a quote →All seal types
