A barrier-fluid data sheet stamped “FDA compliant” is usually making three regulatory claims at once. Only one of them is about the fluid sitting in your seal pot.
On a double mechanical seal in food or pharma service, that barrier fluid is the last thing standing between your process and a contamination event. Which regulation actually qualifies the fluid — versus the seal’s elastomers or the equipment around it — decides what you can defend when an auditor asks.

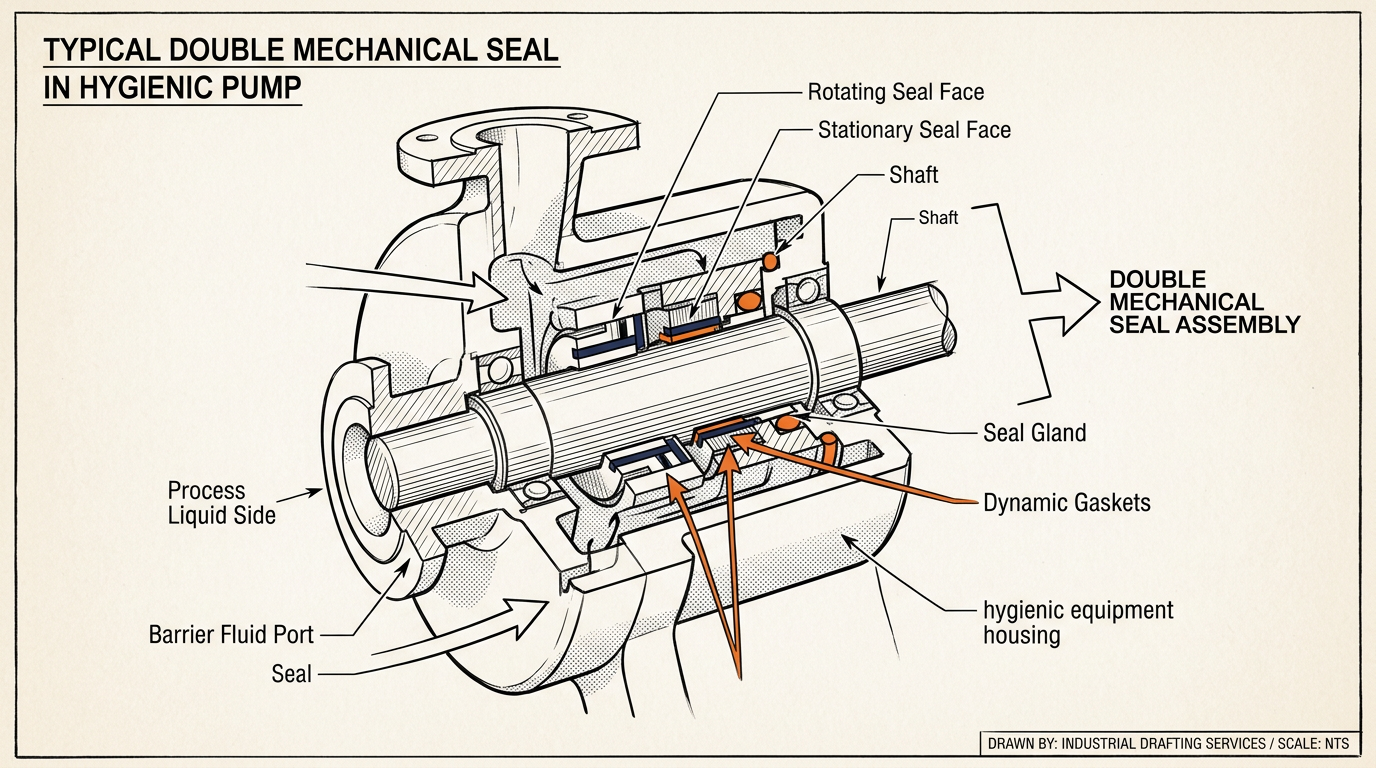

The fluid is sanctioned under 21 CFR 178.3570. The seal’s rubber parts sit under a different section, and 3-A Sanitary Standards cover the hardware, not the chemistry. What the spec sheet rarely tells you is which of those three boxes it has actually checked.
Which Regulation Actually Qualifies the Barrier Fluid
21 CFR 178.3570 is the citation that qualifies the barrier fluid itself — it covers lubricants with incidental food contact. The seal’s elastomers fall under 21 CFR 177.2600, and white mineral oil, one common barrier-fluid base, is cleared separately under 21 CFR 172.878. Same seal system, three different sections of Title 21.
| Regulation | What it governs | In your seal system |
|---|---|---|
| 21 CFR 178.3570 | Lubricants with incidental food contact | The barrier fluid itself |
| 21 CFR 172.878 | White mineral oil as a food additive | One qualified fluid base |
| 21 CFR 177.2600 | Rubber articles for repeated use | The seal’s elastomers |
| 3-A Sanitary Standards | Hygienic equipment design | The seal hardware, not the fluid |
Data sheets blur these constantly. A single product may cite a whole stack — 178.3570, 172.878, 175.105, 177.2600 and more — because one formulation touches its base oil, its additives, and its packaging at once.
That breadth is normal.
What it means in practice is that you can’t read “177.2600” on a fluid sheet and assume the fluid is qualified — that section governs the rubber, not the liquid. I’ve pulled plenty of “FDA compliant” sheets that lead with an elastomer citation and never clearly state the fluid clearance.
The seal’s faces and elastomers are a separate qualification exercise — extraction limits under 177.2600, surface finish, and the like — and choosing those food-grade seal materials is its own decision.
3-A sits one step further removed. It governs the equipment’s hygienic design — surface finish, corner radii, third-party verification — never what’s dissolved in the seal pot.
What NSF H1 Registration Verifies About a Barrier Fluid
NSF H1 registration confirms that every ingredient in a lubricant is cleared for incidental food contact and that the labeling matches — a private listing program, renewed through periodic inspection, not a one-time FDA approval. It verifies the recipe and the label. It does not verify the drum in your store room or the way the fluid was manufactured.
Toby Porter of Klüber Lubrication put the limit plainly: H1 accreditation “does not validate the manufacturing process or the veracity of the labeling.”
Treating “NSF H1” and “FDA approved” as the same claim is the single most common mistake I see on a food-grade spec.
The registration also lapses if no one renews it. ISO 21469 is the step up: it audits the formulation, the manufacturing, and the facility itself. That closes the gap H1 leaves open — like the cross-contamination risk when a plant swaps a line from one formulation to another.
The ceiling behind all of it is small. Incidental-contact limits for H1 lubricants are commonly set around 10 ppm, above which the food is considered adulterated.
Choosing a Qualified Food-Grade Barrier Fluid
Once a fluid is qualified, the choice among the three practical classes — white mineral oil, propylene glycol solutions, and food-grade synthetic PAO — comes down to operating temperature and viscosity. NSF H1 narrows the compliant set; it does not pick the fluid for you.
| Fluid class | Best fit | Watch for |
|---|---|---|
| Propylene glycol (pre-mixed) | Cooling-limited, moderate temperatures | Never neat glycol or automotive antifreeze |
| White mineral oil | Higher-temperature stability | Lower heat transfer than water or glycol |
| Food-grade PAO | Wide temperature range | Higher cost; confirm H1 registration is current |
Water carries heat about three times better than oil, so cooling-limited duties lean toward a glycol-water mix; oil earns its place once the temperature would boil water off.
Two glycol mistakes come up over and over.
Someone reaches for proprietary antifreeze, whose additives plate out on the seal faces, or runs neat glycol expecting more to help — which actually raises the freezing point and generates heat through viscous shear. Buy it pre-mixed in sealed containers and both problems disappear.
Water is the other route when it’s compatible with the process. The trade between seal water and an oil-based barrier fluid — heat transfer against temperature range — is a decision in its own right.
The fluid choice only holds up if the seal around it can take the same duty. CIP and SIP cycles swing the barrier fluid through temperature extremes a standard seal isn’t built for — a duty addressed by a double mechanical seal built for hygienic, clean-in-place service.
Documenting Your Food-Grade Barrier Fluid for an Audit
The audit file needs three documents a data sheet alone won’t give you. You can cite 178.3570 correctly, pick a registered fluid, and still fail the audit because none of this was on file:
- The current NSF H1 registration number — listings expire, and an auditor checks that the registration is still active, not that the label once read “H1.”
- A batch-specific certificate of analysis (COA) — it ties the drum in your store room to the formulation that was actually registered.
- An allergen statement covering the propylene glycol carrier and any additives in the formulation.
There is no published changeout interval specific to food-grade barrier fluid. Anyone quoting you a hard number is guessing.
What does change against a standard fluid is handling discipline. Refill from sealed, pre-mixed containers, never top up from an open drum, and treat a contaminated barrier fluid as a food-safety event, not a maintenance one.
The reservoir that holds and cools that fluid is part of the same defensible system. Get the seal pot sizing right and the barrier fluid stays inside its qualified temperature range instead of drifting past it.
Where Food-Grade Specifications Slip
The seals I’ve seen flagged in an audit didn’t fail on chemistry. They failed on a missing registration number.
Before startup, confirm two things: that the fluid clearance you’re citing is 178.3570 and not the elastomer’s 177.2600, and that the NSF H1 registration is still active rather than simply printed on an old sheet. Those two checks catch the errors that “FDA compliant” hides.
Each framework drops a different document in the file — the fluid citation, the registration record, the equipment’s 3-A basis. The fluid that passes on paper and the fluid that passes an audit differ by exactly that paperwork, which is a filing habit, not a chemistry problem.
