A study of 11,000 mechanical seal failures across 148 industrial plants found that 13% traced back to bearing maintenance — not to seal type, not to material selection, not to operating pressure. Shaft condition drove the outcome. That finding reshaped how I approach the pusher vs non-pusher decision, and it should change yours too. If your specific decision is pusher vs metal bellows (API 682 Type A vs Type B), Pusher vs Bellows Mechanical Seals drills into materials, temperature limits, and fatigue tradeoffs.
Most engineers evaluate pusher and non-pusher mechanical seals on temperature range and chemical compatibility. Those matter, but they’re not where selection goes wrong. The real differentiator is shaft condition — and most plants never measure it before choosing a seal design.
How Pusher and Non-Pusher Seals Actually Differ
A pusher mechanical seal uses a spring-loaded secondary seal — typically an O-ring or PTFE wedge — that slides along the shaft or sleeve to maintain face contact as the primary seal faces wear. The spring provides closing force, and the secondary seal must move axially to compensate.
A non-pusher seal eliminates that sliding element entirely. Metal bellows or elastomer bellows weld or bond directly to the seal components, flexing rather than sliding to accommodate wear and thermal growth. No dynamic O-ring, no shaft contact for the secondary seal.
That difference has a direct consequence: a pusher seal’s reliability depends on shaft surface quality, while a non-pusher seal tolerates poor shaft conditions by design.
Roughly 50-60% of all mechanical seal failures stem from operating problems and installation errors — not seal design. For pusher seals, the shaft-dependent secondary seal is the component most exposed to those conditions.
For non-pusher seals, it’s bellows fatigue and pressure limits. Different failure paths, different selection criteria for centrifugal pump applications.
Pusher Seal Anatomy
A pusher seal has four basic components: a spring assembly (single coil, multi-spring, or wave spring), a dynamic secondary seal (typically an elastomer O-ring or PTFE wedge), a rotating seal face, and a stationary seal face. The spring applies an axial load through the dynamic O-ring, which slides along the shaft as the carbon face wears — fractions of a millimeter per year — to keep the faces pressed together without manual adjustment.
Spring style matters more than most procurement teams realize. Single-spring designs handle slurry and particulate-laden services where thinner multi-spring wire would clog, but distribute load less evenly across the face. Multi-spring designs resist centrifugal unwinding at high shaft speeds and apply load uniformly, but their thinner wire corrodes faster in aggressive chemistries. Wave springs occupy less axial space when seal chamber depth is tight, at the cost of higher force variation with deflection.
Balanced vs unbalanced controls the pressure envelope. Unbalanced pusher seals handle up to about 200 psig — beyond that, hydraulic closing force on the faces causes excessive heat and accelerated wear. Balanced designs reduce that closing force and extend the rating to roughly 3,000 psig. If your sealed pressure exceeds 200 psig, you need a balanced design, no exceptions.
Why Pusher Seals Fail — And Why It’s Usually Not the Seal
I’ve seen this failure pattern dozens of times: a plant replaces a pusher seal every six months, blames the design, and switches to an expensive bellows seal. The new seal lasts two years — not because the design is superior, but because the installation team actually inspected the shaft during the upgrade.
Hang-up accounts for 10-20% of all mechanical seal failures. It occurs when the dynamic O-ring loses axial movement — leakage accumulates beneath the floating element, hardens into deposits, and locks the secondary seal in place. Once the O-ring can’t track face wear, the seal faces open and fail.
What the spec sheet doesn’t tell you: coking is almost never a problem for hydrocarbons below 300 degrees F. Most refineries run dozens of pumps below that threshold, yet still default to bellows seals to “avoid hang-up.” They’re paying a premium to solve a problem their operating temperature doesn’t create.
The real hang-up triggers are shaft surface roughness, corrosion buildup on the sleeve, and inadequate flush. When leakage doesn’t accumulate — because the shaft is smooth enough for the O-ring to slide freely and the flush keeps the seal chamber clean — pusher seals run reliably for years.
Seal failure often indicates deeper equipment issues — bearing failure or excessive shaft deflection causing wide contact patterns and leakage. The seal is the symptom, not the disease.
When Hang-Up Is a Real Design Concern
Not every hang-up case is preventable through maintenance. In services where the process fluid itself deposits on the shaft — heavy hydrocarbons above 300 F, slurries, polymerizing fluids — the dynamic O-ring faces deposits regardless of surface finish. These applications genuinely need non-pusher designs.
If the deposit source is leakage from a controllable seal environment, fix the environment. If it’s the process fluid itself, change the seal design.
Why Bellows Seals Also Fail
Bellows seals eliminate the sliding-O-ring failure modes entirely, but they introduce three failure modes that pusher seals cannot experience. Plants that blanket-switch from pusher to bellows after a hang-up incident often discover the new failure pattern six months later.
Fatigue cracking in flashing hydrocarbon service. Cyclic pressure fluctuations from process vaporization cause repeated bellows expansion and contraction, forming microscopic cracks that propagate to failure. The irony: this happens in the exact application where bellows are most commonly specified — hot hydrocarbons where pusher seals hang up from coking.
Stress corrosion cracking of 316L bellows in chloride environments. 316L, unlike the Alloy C-276 that API 682 specifies for Type B bellows, has a specific chemical vulnerability — chloride-induced SCC initiates from residual thermal stresses around the welds and propagates inward. In chloride service (most cooling water, marine, brine), a properly maintained pusher seal with a compatible fluoroelastomer O-ring outlasts a 316L bellows.
Vacuum lock on restart. During shutdown, vacuum can form between seal faces. On restart, if the vacuum does not break cleanly, torsional load transmits through the bellows, twisting and tearing it. Pusher seals shrug this off — the spring provides breakaway force without transferring torque through the secondary seal. For intermittent or frequent start-stop service, this risk alone can flip the pusher-vs-bellows decision.
The API 682 standard codifies the design split: Type A pusher, Type B metal bellows, Type C high-temperature metal bellows. Type A is the default — bellows should be specified for cause, not defaulted to as an upgrade.
Shaft Condition: The Selection Factor Most Engineers Skip

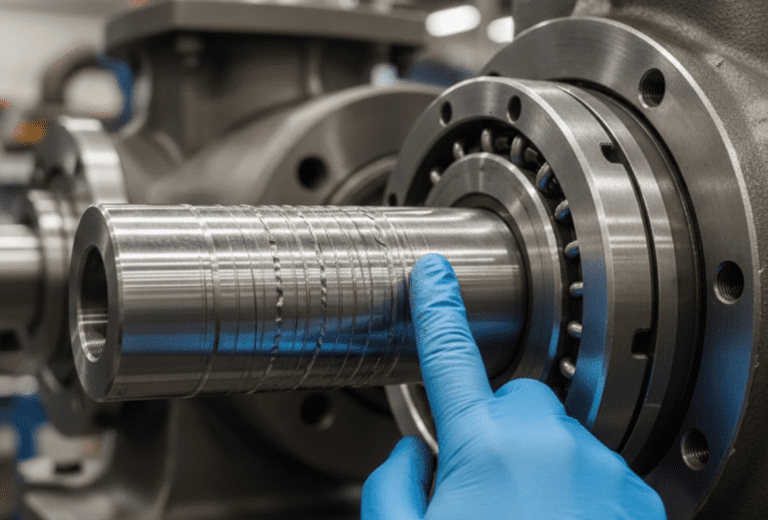

Before choosing between pusher and non-pusher mechanical seals, measure two things on your shaft or sleeve.
Surface Finish
The shaft surface under the dynamic O-ring must be smoother than 32 RMS to allow axial movement. Above that roughness, the O-ring drags rather than slides, and hang-up becomes a matter of when, not if. I check this with a profilometer during every seal change — it takes 30 seconds and prevents six months of troubleshooting.
Most shafts leave the factory well below 32 RMS. The problem develops in service: corrosion pitting on bare 316 SS shafts, fretting damage on sleeves, and coating wear on chrome oxide surfaces. A shaft that was fine at commissioning may not be fine at the first seal replacement.
Shaft Deflection
API Standard 610 specifies a maximum of 0.002 inches shaft deflection at the seal face location. Above 0.002 inches, the dynamic O-ring in a pusher seal can’t maintain consistent contact pressure, and face alignment suffers.
Bearing wear, impeller imbalance, and cavitation damage all increase deflection over time. If your pump consistently operates above 0.002 inches — common in older equipment with deferred bearing maintenance — a non-pusher bellows design compensates through flexure rather than sliding.
That’s a legitimate reason to choose non-pusher. Choosing it because “bellows seals are better” is not.
When to Choose Each Design
The pusher vs non-pusher decision reduces to measurable parameters — not brand preference or generic “demanding application” categories.
Choose a pusher mechanical seal when:
- Shaft surface finish is maintained below 32 RMS (standard maintenance practice)
- Shaft deflection stays within API 610’s 0.002-inch limit (healthy bearings, proper alignment)
- Process temperature stays below 300 F for hydrocarbons (coking risk is negligible)
- The plant has a regular flush system inspection program
- Cost matters — pusher seals typically cost 30-50% less than equivalent bellows designs
Choose a non-pusher (bellows) mechanical seal when:
- Shaft surface quality cannot be guaranteed between maintenance intervals (corrosive services, abrasive media, long run times)
- Temperature cycling exceeds the elastomer limits of the secondary seal (metal bellows handle wider thermal ranges)
- The process fluid deposits on the shaft (heavy hydrocarbons above 300 F, polymerizing chemicals)
- Shaft deflection exceeds 0.002 inches and bearing replacement isn’t planned
- Chemical attack on elastomeric O-rings is unavoidable (strong oxidizers, concentrated acids)
Choose metal bellows specifically for high-pressure applications where rigidity matters — they handle higher pressures than elastomer bellows. Choose elastomer bellows when shaft movement tolerance and vibration damping matter more than pressure rating.
The API 682 standard specifies this for a reason: Type A (pusher, balanced), Type B (non-pusher, metal bellows), and Type C (non-pusher, high-temperature bellows) each map to specific operating envelopes. The standard makes Type A the default and Type B an option, with Type C for high temperatures — it defines where each belongs.
The Bottom Line
Check your shaft before you choose your seal. Measure surface finish, confirm deflection is within spec, and assess whether your operating conditions actually create hang-up risk — most applications below 300 F don’t.
The most expensive mistake I see isn’t choosing a pusher seal that fails. It’s over-specifying a bellows seal that costs twice as much in a service where a properly maintained pusher seal would have run just as long. Start with shaft condition, then let the operating envelope narrow your options.
