A pair of 1.2 MW boiler feed water pumps in a refinery seized repeatedly after commissioning. Repairs ran into hundreds of thousands of dollars. Production losses climbed into the millions. The root cause was not the pumps — it was inadequate sealing for the pressure involved.
High-pressure mechanical seals are engineered differently from standard seals at every level: balance ratio, face materials, spring configuration, and support systems. The engineering starts with one question: what happens to closing force when pressure rises?
What Pressure Qualifies as “High Pressure” for a Mechanical Seal
There is no single PSI value that defines “high pressure” for mechanical seals. The threshold depends entirely on the seal design.
An unbalanced seal reaches its practical ceiling around 10 barg (145 psi). Above that pressure, hydraulic closing force pushes seal faces together so hard that lubrication breaks down and heat generation spikes. A properly balanced seal handles the same 145 psi with ease — and depending on face materials and support systems, operates reliably at pressures many times higher.
At the extreme end, seal chamber pressures in fossil power plants reach 3,000 psig (207 bar) with process water temperatures up to 700 deg-F (371 deg-C). These applications use dual-stage sealing architectures with dedicated cooling and pressure management.
The pressure limit for any mechanical seal is not a fixed number stamped on a datasheet. It shifts with balance ratio, face area, material pairing, and how well the support system manages heat and contamination. The real answer depends on how the seal was designed, not just what pressure is applied.
Why Standard Seals Fail at High Pressure
Standard seals fail at elevated pressures because of what happens to the hydraulic closing force acting on the seal faces.
In a standard unbalanced seal, the full system pressure acts on the entire face area, driving the faces together. As pressure increases, this closing force rises proportionally — creating three cascading problems.
Face Contact Pressure Beyond the Fluid Film
First, face contact pressure climbs beyond where the fluid film can survive. The thin lubricating film that keeps seal faces from touching collapses, and once carbon-to-ceramic contact begins, wear accelerates exponentially. An unbalanced seal generates 30-40% more heat than a balanced seal under identical pressure and speed conditions. That excess heat distorts the faces, making contact pressure even more uneven.
Pressure Direction, Not Just Magnitude
Second, pressure direction matters as much as magnitude. At 1,000 psi external pressure, a carbon graphite primary ring develops roughly 8,000 lbf/in-sq in compression — well within safe limits. But reverse the pressure to internal pressurization, and those same stresses flip to tension. Carbon graphite has a tensile strength of only about 7,000 psi. The same pressure that a seal handles in one direction can crack the ring in the other. I’ve seen this failure pattern dozens of times in applications where suction and discharge pressures create different loading directions on the seal faces.
What Pressure Spikes Do to the Faces
Third, pressure spikes force seal faces apart momentarily before slamming them back together. The result is chipping and cracking across the face surface — damage that no amount of face lapping can recover.
A pressure rating alone does not capture whether a seal will survive in service. Performance depends on the fluid, operating conditions, and equipment behavior over time — not just the number on the datasheet.
Design Features That Handle High Pressure
High-pressure seal design differs from standard seals in three areas: balance ratio engineering, face material selection, and spring configuration.
Balance Ratio
Balance ratio is the single most important design parameter for high-pressure service. It controls how much system pressure translates into closing force on the seal faces.
Industry standard values are specific to the fluid being sealed. For water and non-flashing hydrocarbons, the standard balance ratio is 0.75. For flashing hydrocarbons — where vapor pressure exceeds atmospheric at service temperature — the ratio increases to 0.80-0.85. Unbalanced seals have effective ratios of 1.25-1.35, meaning closing force actually exceeds what system pressure alone would produce.
The tradeoff is real: a lower balance ratio reduces face loading and heat generation, but creates thicker lubricating films that increase leakage. For most high-pressure applications, a balanced seal design at 0.75 delivers the right compromise. For flashing services, the higher 0.80-0.85 ratio adds closing force to prevent face separation during phase transitions.
Face Materials
Face material selection for high-pressure service centers on compressive strength, thermal conductivity, and resistance to thermal shock.
Silicon carbide (SiC) — particularly reaction-bonded SiC — has become the standard hard face for high-pressure applications. It handles high compressive loads, conducts heat efficiently, and resists thermal shock well.
Tungsten carbide (WC) offers comparable hardness but is particularly susceptible to thermal shock cracking. In high-pressure applications where thermal cycling is common — startup, shutdown, load changes — this vulnerability makes WC a riskier choice. I’ve pulled cracked tungsten carbide faces from pumps that ran perfectly at steady state but couldn’t survive thermal transients during load swings.
For the mating face, metalized carbon is the most forgiving self-lubricating material in high-temperature, high-pressure service. It provides the lowest friction coefficient and tolerates upset conditions — particularly dry running — that would destroy harder face combinations.
Spring Configuration
In standard applications, springs sit inside the process fluid for mechanical simplicity. In high-pressure service with challenging fluids, this becomes a liability.
Dirt, scale, and process solids collect between spring coils, restricting their response to shaft movement and vibration. For high-pressure applications involving dirty or particle-laden fluids, external spring placement — isolating springs from the process — eliminates this failure mode entirely.
Seal Arrangements for High-Pressure Service
A properly designed single balanced seal handles many high-pressure applications effectively. Dual arrangements become necessary when pressure exceeds what a single stage can manage, or when any leakage is unacceptable.
Single Balanced Seals at Moderate Pressure

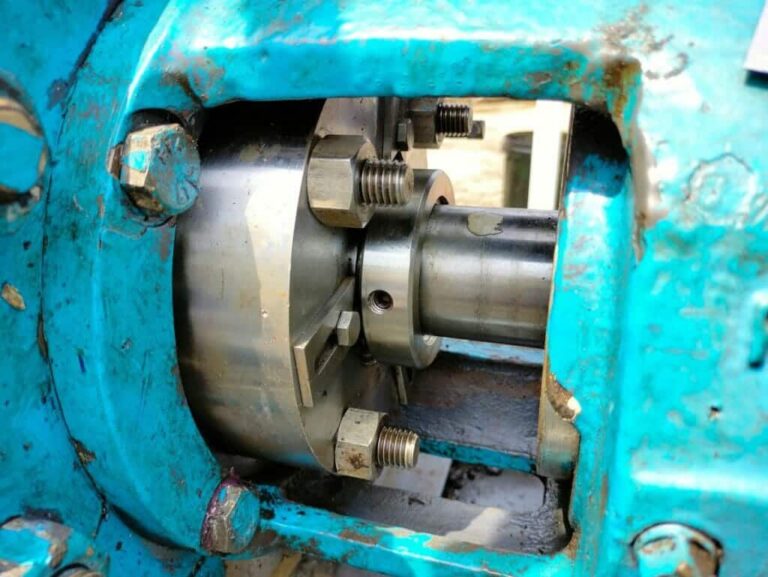

For moderate high-pressure service — roughly 300-500 psi depending on speed and fluid — a single balanced cartridge seal with appropriate face materials and a flush plan is often the right answer. The API 682 standard specifies this for a reason: cartridge designs eliminate the installation variables that cause most seal failures, and pre-set compression ensures correct face loading from day one.
Dual-Stage Architecture at Extreme Pressure
At extreme pressures — 3,000 psig in boiler circulating pumps — a dual-stage architecture splits the pressure differential across two seal sets. Topher Ropp, Principal Engineer at Flowserve with over 30 years in the sealing industry, describes the architecture for fossil power plant service: a Plan 23 cooler between the process and inboard seal, plus a Plan 52 partially pressurized stage between the inboard and outboard seals. A pressure control valve reduces Plan 52 pressure to approximately half the process pressure, equalizing differential load across both faces.
If one seal in a dual arrangement fails, the remaining seal handles full process pressure for up to a month — allowing scheduled maintenance rather than a costly emergency shutdown worth millions in continuous-process plants.
I worked on a boiler feed pump installation where upgrading to a proper high-pressure sealing system doubled mean time between repairs from 20 to 40 months and eliminated unplanned shutdowns. The seal was only part of the solution — the API 682-compliant support system with thermocouples at cooler inlets, pressure transducers tracking the control valve, and magnetic separators in the cooling loop made the difference between a seal that works on paper and one that works for years.
Specifying Your First High-Pressure Seal
Start any high-pressure seal specification by defining the actual pressure profile: steady-state, spikes, direction, and thermal cycling. Match the balance ratio to the fluid service (0.75 for water, 0.80-0.85 for flashing hydrocarbons). Select SiC over WC when thermal transients are present. Then determine whether a single balanced seal or a dual-stage arrangement fits the pressure and risk profile.
What the spec sheet won’t tell you: published PV limits are projected from 100-hour laboratory tests to multi-year service lives. A 17,520-hour wear life projected from a 100-hour test contains a wide safety margin. Properly designed high-pressure seals rarely wear out — they fail from system issues long before face wear becomes the limiting factor. Get the design and support system right, and the seal will outlast the maintenance schedule.
